Mixing Station MS-150 6 Bag
MS-150 is the ultimate mixing station for all self-levelling cement and compounds, producing a perfect mix every time. Designed by contractors for contractors it provides efficient hands free mixing and fast precision pouring of materials saving time and effort on jobs.
Know the Product

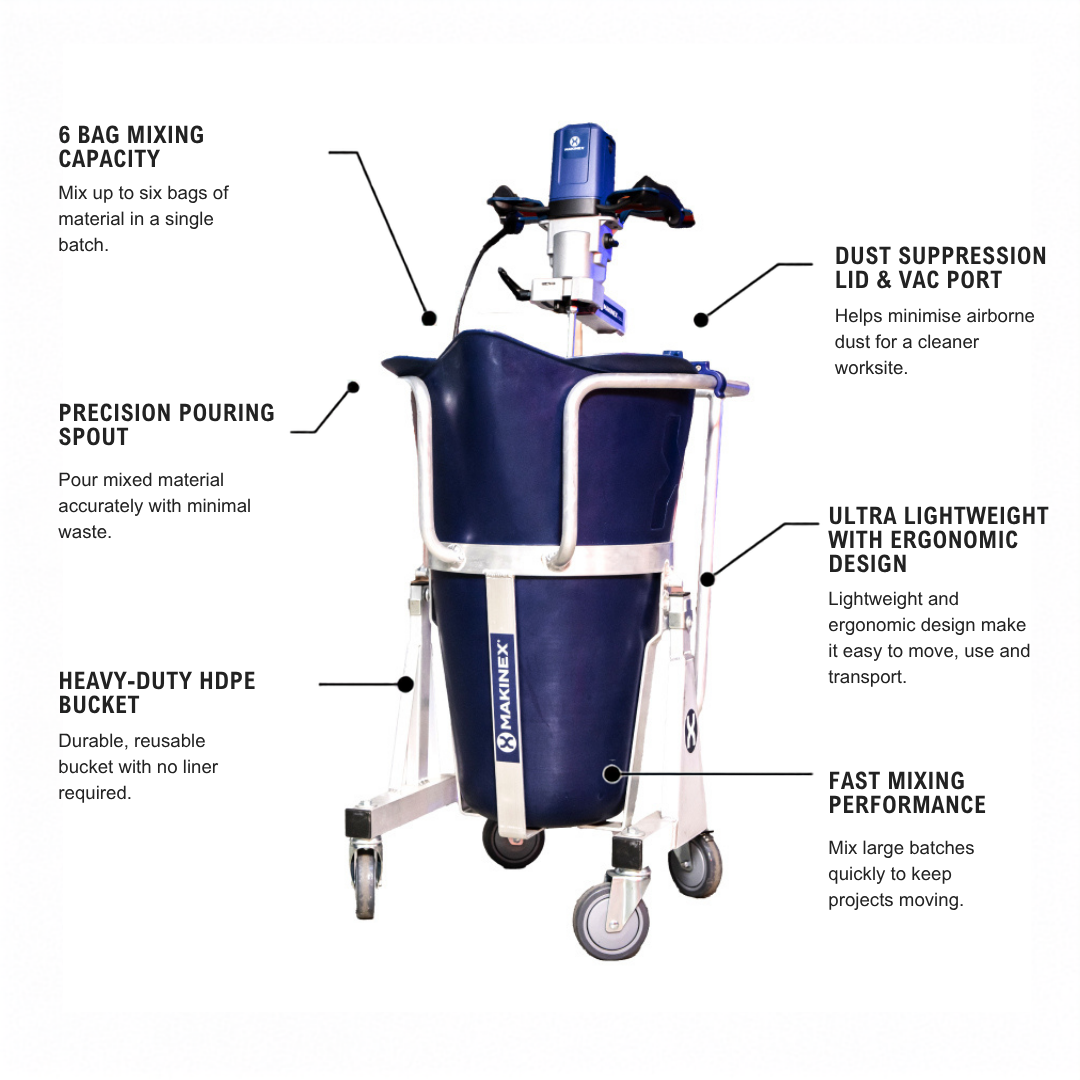

Mixing Station MS-150 6 Bag
An MS-150 mixing station can mix up to 160kg (353 lbs) (6 x 20kg bags plus water) in 7minutes. The MS-150 is ultra-lightweight for easy transportation and the ergonomic design with easy-tilt operation provides control and speed for precision pouring. MS-150 AU provisional patent application No. 2022902209
Features and Benefits
Solution Benefits
• Braked castor wheels
• 4-bag & 6-bag helix paddles included
• Over current, over heating protection
• Mixes up to 160kg
• Ultra lightweight with ergonomic design
• 2-speed gearbox with variable speed controller & lock-on switch
Specifications
| MS-150 DIMENSIONS: | |
| HEIGHT HANDLE ATTACHED (Operating) | 1084mm -1327mm (42.7 – 52.2 inches) |
| HEIGHT HANDLE DETACHED (Transport) | 1034mm (40.7 inches) |
| OVERALL WIDTH | 612mm (24.1 inches) |
| OVERALL LENGTH | 740mm (29.1 inches) |
| LENGTH OF HANDLE ADJUSTMENT | 243mm (9.56 inches) |
| WEIGHT (WITHOUT MAKINEX ELECTRIC MIXER AND HELIX PADDLE) |
22kg (48.5 lbs) |
| WEIGHT (WITH MAKINEX ELECTRIC MIXER AND HELIX PADDLE) |
33kg (72.75lbs) |
| NO-LOAD SPEED 1 ST GEAR |
150 – 300 rpm |
| 2 ND GEAR |
300 – 650rpm |
| OUTPUT SHAFT THREAD | M14 |
| WEIGHT | 6.5kg (14.3 lbs) |
| CLASS OF PROTECTION | II |
| SOFT START | YES |
| OVER CURRENT PROTECTION | YES |
| OVER HEATING PROTECTION | YES |
Safety Compliance
Safety compliance:
Model no. MS-150-UK
CE mark (Machine Directive +EMC+RoHS)
CE Certified mixer according to EN 62841-1:2015
EN 62841-2-10:2017 with IEC 62841-2-10 test report
UKCA mark
EMC:
Mixer is tested and compliant according to EN IEC 55014-1
EN IEC 55014-2
EN IEC 61000-3-2
EN 61000-3-3:2013/A2:2021What Our Customers Say
More Videos
Need A Service Or Spare Parts?
Original spares and parts are available, we can help you get what you need!
